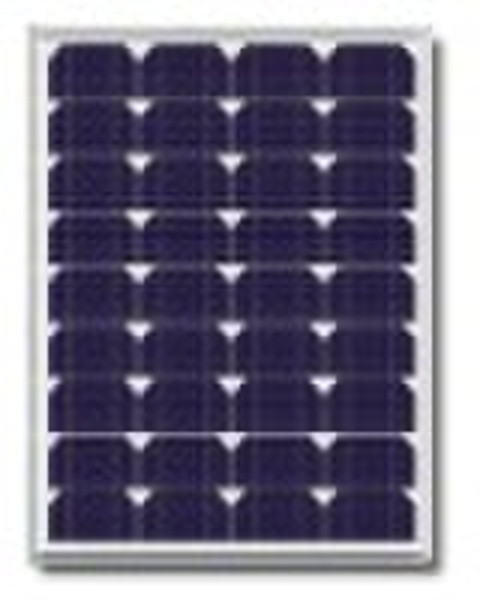

Solar Panel Module (GS-M-40W)
original price: 85,00 USD
Vaessen DENG
Contact person
Basic Information
| Place of Origin | Zhejiang China (Mainland) |
|---|---|
| Brand Name | Green Source |
| Model Number | GS-M-40W |
| Size | 620*540*25 |
| Number of Cells | 36 cells |
| Max. Power | 40W |
| Material | Monocrystalline Silicon |
Solar Panel Module 40W MONO or POLY:MONO Maximum power (Wp):40wp Maximum power voltage (V):17.8 Maximum power current (A):2.25 Open circuit voltage (V):21.9 Short circuit current (A):2.55 Number of cells (Pcs):36 Size of module (mm):620*540*25( 125*62.5mm cell) Size of glass(mm):614*534*3.2 Temperature coefficients of Pm (%): -(0.5± 0.05)/ º C Temperature coefficients of Isc (%): (0.065± 0.015)%/º C Temperature coefficients of Voc(%): -(0.3± 0.05)% / º C Temperature Range: -40º C +85º C Tolerance Wattage (e. g. +/-5%): ± 5% Surface Maximum Load Capacity: 60m/s(200kg/sq. m) Allowable Hail Load: 227g steel ball fall down from 1m height Weight per piece (kg): 3.8 Cell Efficiency (%): >15% Frame (Material, Corners, etc. ): Aluminum Standard Test Conditions: AM1.5 1000W/m2 25º C Warranty: 2 years product warranty and 25 years 80% of power
Delivery terms and packaging
Port: FOB Ningbo
Payment term
Letter of credit
Telegraphic transfer
Western Union
-
Payment Methods
We accept:
